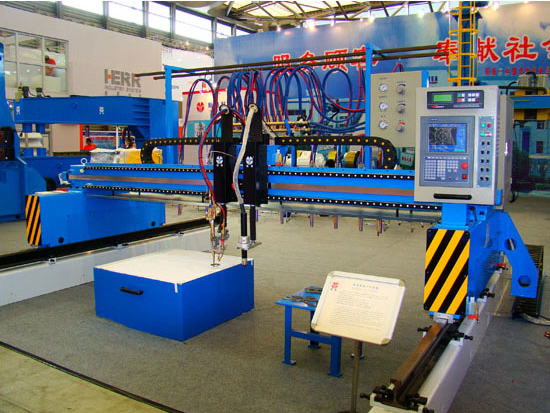

This series machine is our new model which is combined with many years' cutting machine manufacturing experiences and the merits of others. Several CNC systems could be selected. It not only can cut straight strips in batch but also can cut different profiles. It adopts beam welding mainframe and duak -axial rail. It has better performance in the aspects of structure stability,humanized operation, transmission cutting precision, manufacturing technology and appearance quality. All the performance indexes accord with or surpass the mechanical industry standards.

Main Technical Parameter

Model	QSH30-40	QSH30-100II
Drive way	Single side drive, use 24KG/m rail	Double side drive, use 38KG/m heavy rail
Rail span(m)	3—4	3—10
Valid working width(m)	2.2—3.2	2.2—9.2
Strip cutting width(m)	80—3200	80—9200
Torch lift stroke(m)	170
Flame cutting speed(mm/min)	50-1000(setting as per cutting technology)
Fast return speed(mm/min)	6000
Flame cutting thickness(mm)	6—100(single torch), piercing thickness≤80
Flame cutting material	MS
Input power	single phase AC220V,50Hz,2KVA
Intersection point deviation(mm)	≤0.5(800x800 industry standard prescribed figure lineation)
Diagonal error(mm)	≤0.5(300x300 square lineation)
